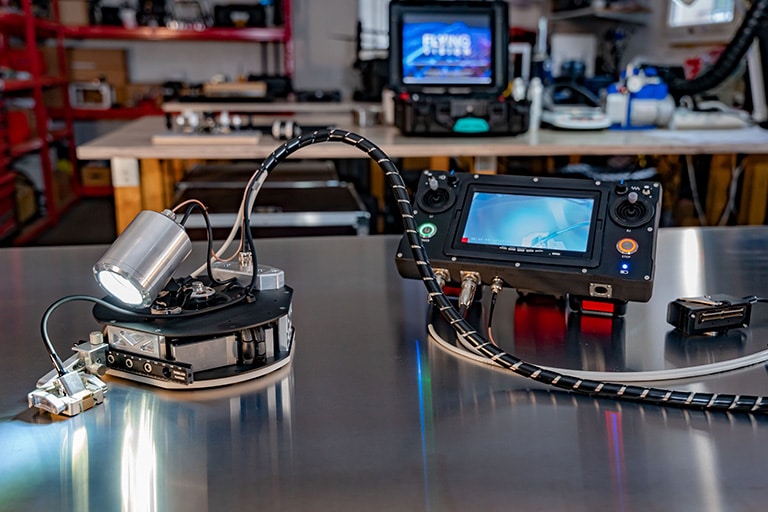

Gamma Tank Inspection Robot (RICG)









Non-contractual photo
Take control of your tanks in nuclear and other challenging environments with the RICG, the expert robot for phased array (PA) inspections, reaching all the inaccessible areas for humans.
The RICG is a remotely operated submerged robot designed to perform phased array (PA) ultrasonic inspections for non-destructive testing on immersed flat vertical or horizontal walls, including radioactive environments. With its precision, versatility, and innovative suction system, it provides reliable and secure inspections for various tank geometries.
Context and field of application
The RICG is specifically designed to perform conventional ultrasonic inspections or phased array (PA) inspections in various environments such as nuclear facilities and other submerged tanks. Suitable for both radioactive and non-radioactive environments, it provides a versatile and high-performance solution for the integrity testing of submerged structures.

Nomenclature

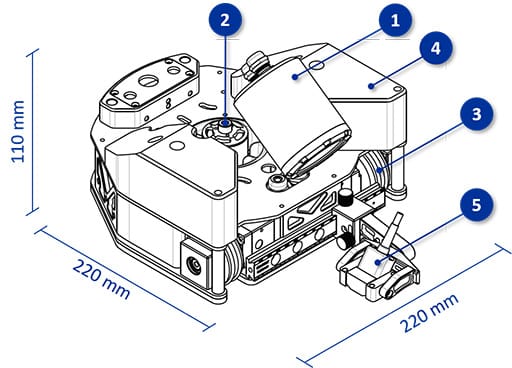

- HD Camera
- Plating Turbine
- Flexible Drive Wheel
- Floats
- PA Probe Holder
Advantage
Performance
Inspection in harsh environments including radioactive
-
High acquisition speed
Quality
Accuracy and linearity of control
-
High quality components for optimal reliability
Security
Reduced risk to personnel through remote inspection
Versatility
Modularity and speed of changing the configuration of the probe holder to inspect any type of submerged tank
Features

Car type steering
Proportional left-right steering and forward-backward motion for exceptional maneuverability. Turning radius equal to the width of the robot.

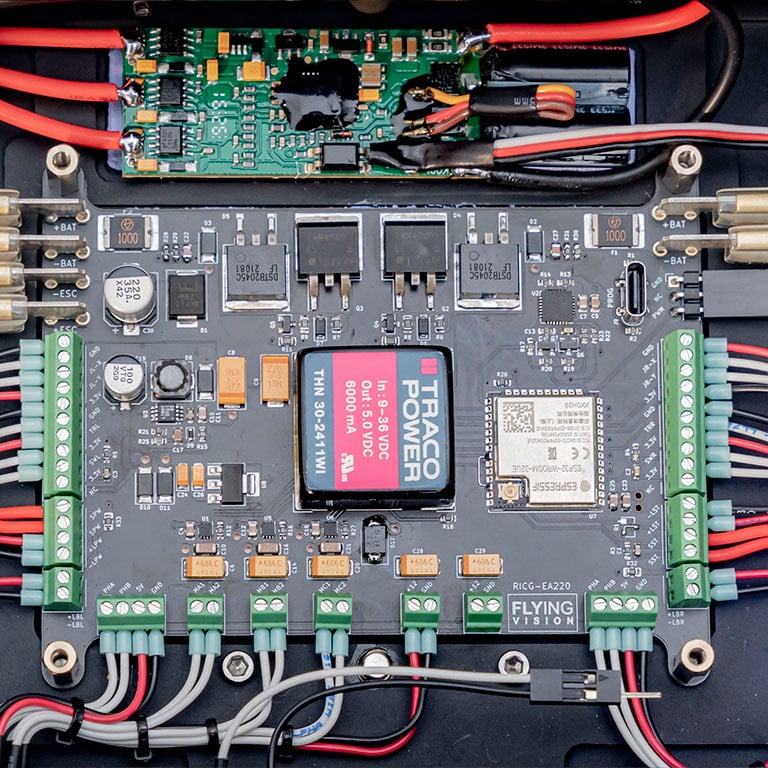

Steering precision
Gestion par microcontrôleur, courbes d’accélération et de décélération compensées et pilotage asservi pour une précision optimale.

Steering precision

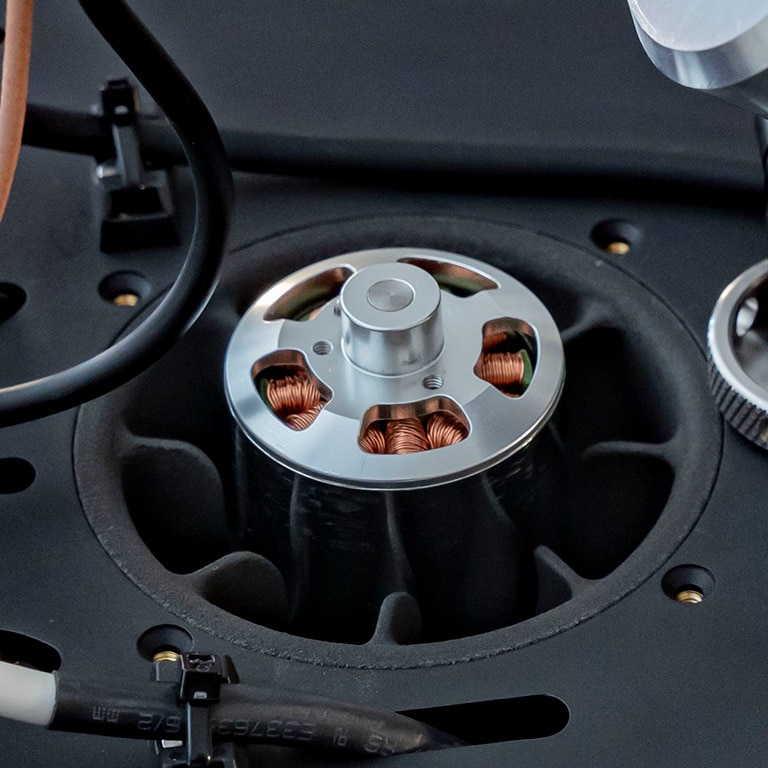

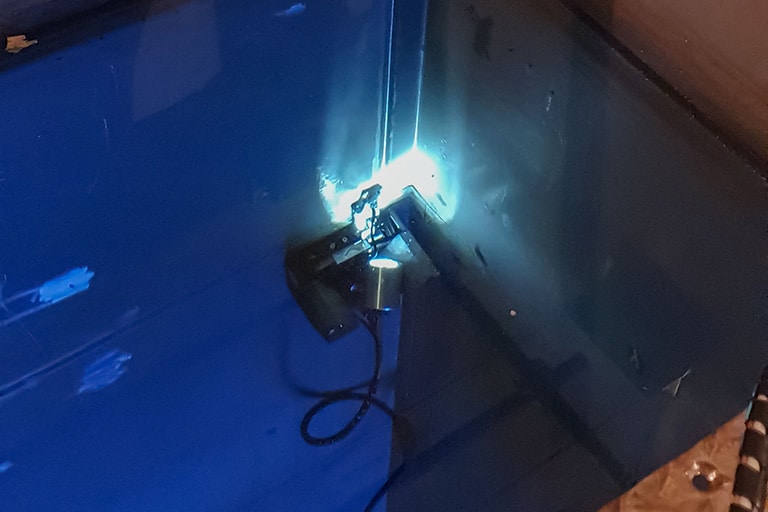

Neutral buoyancy and a rectified flow suction system ensure perfect adhesion to walls, even in a vertical position, and precise movement and positioning for seamless inspections.

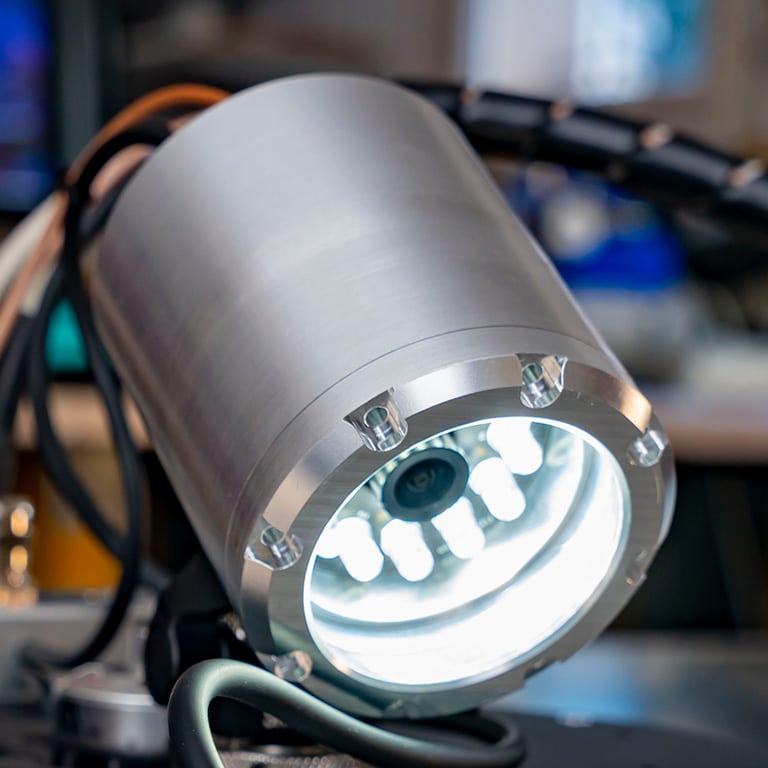

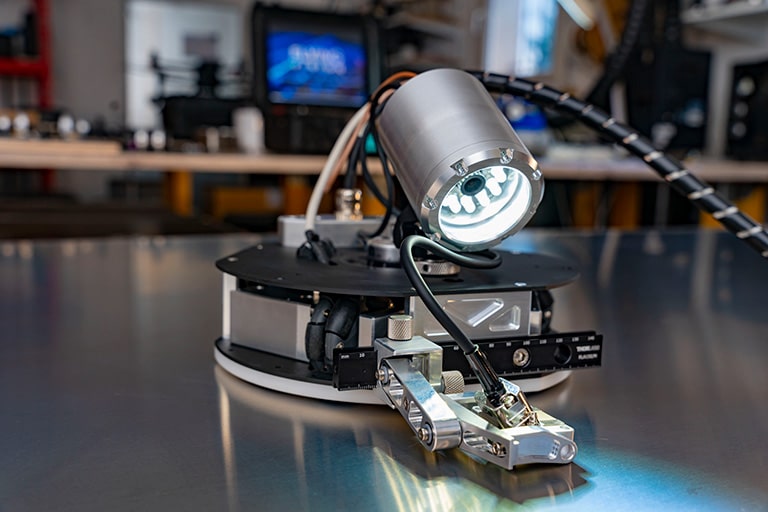

HD camera with lighting

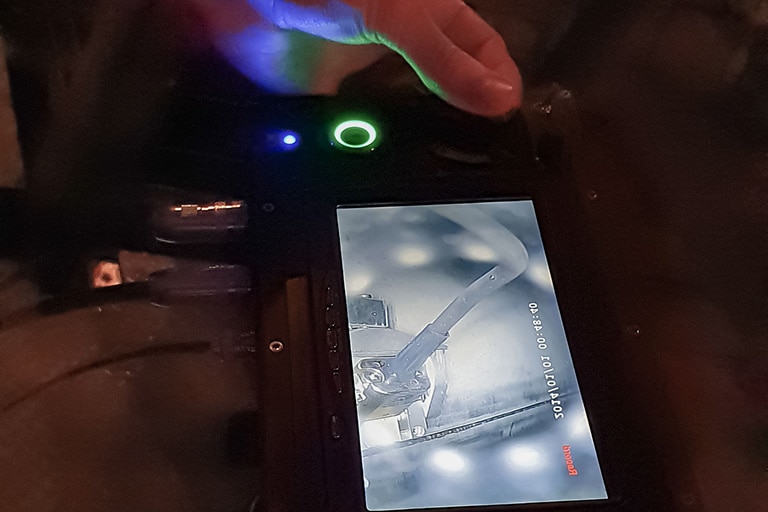

Low-latency HD camera equipped with lighting to track the robot’s movement in real time and inspect the controlled area.

Video recording

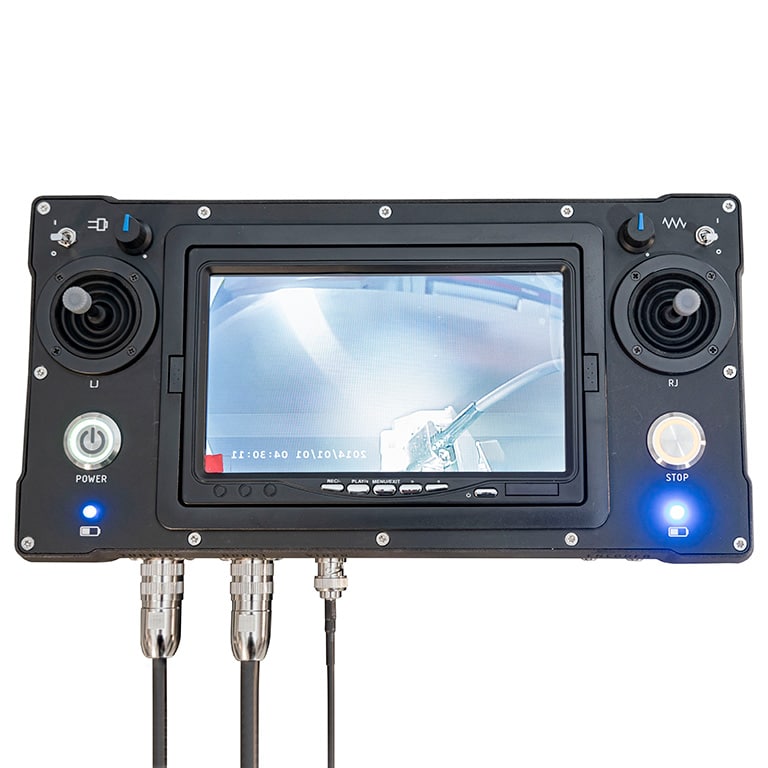

Ability to record the video stream onboard the control station for later review.

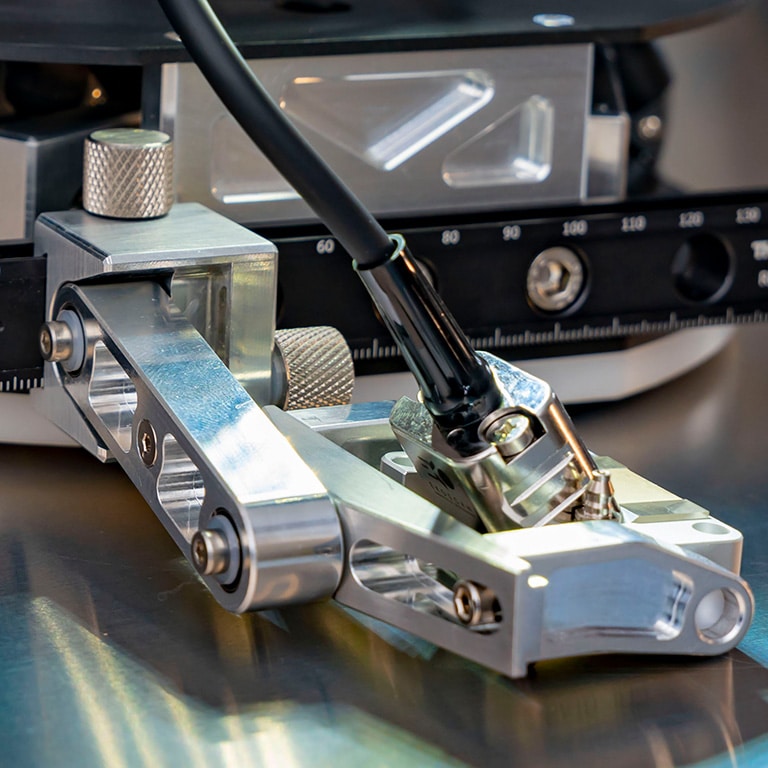

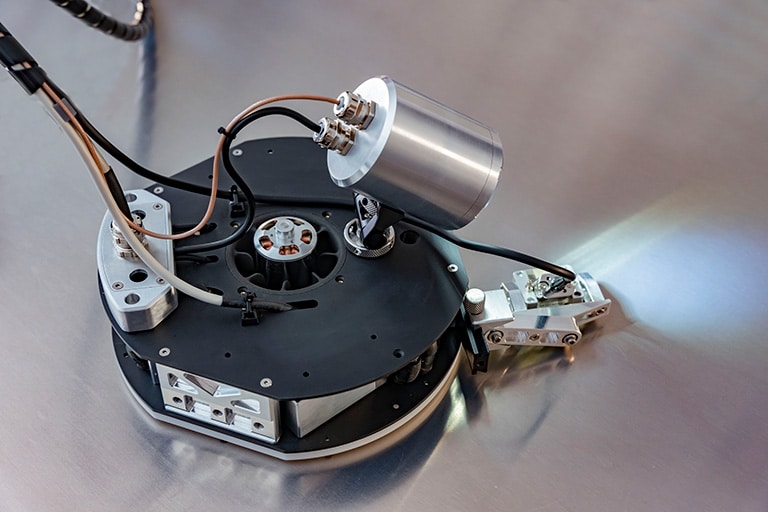

PA probe holder

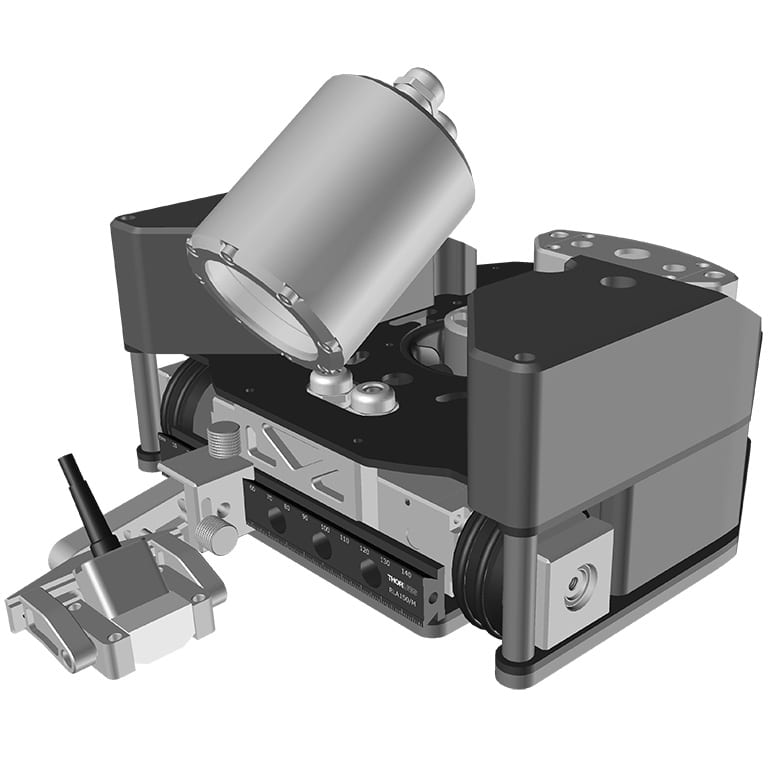

Modular and adjustable PA probe holder designed to perform inspections without dead zones on various tank geometries. It can be moved to either side of the robot on a positioning rail and can be flipped to perform inspections on the left and right sides, providing flexibility and adaptability to different configurations.

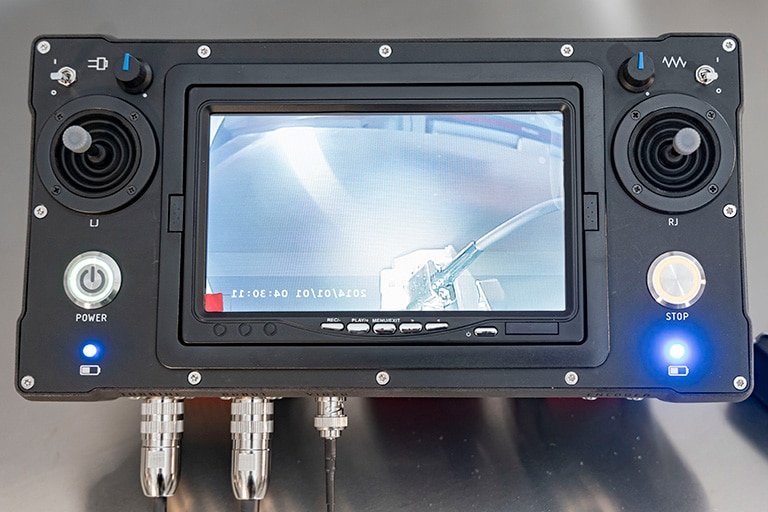

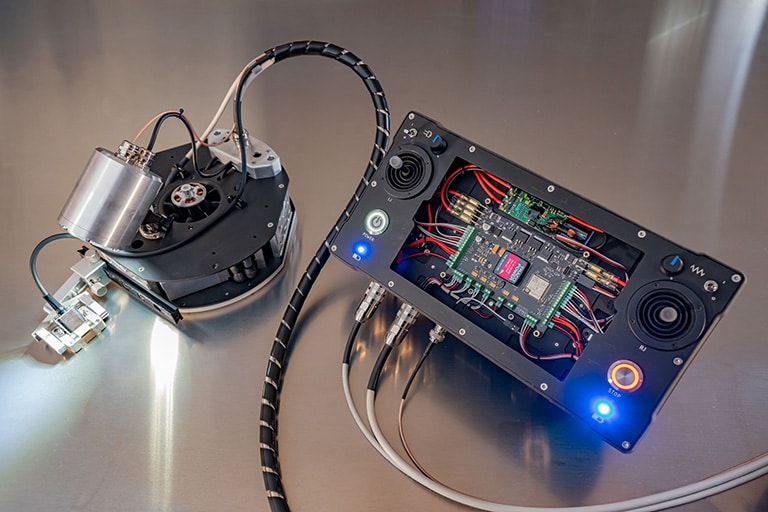

Control station

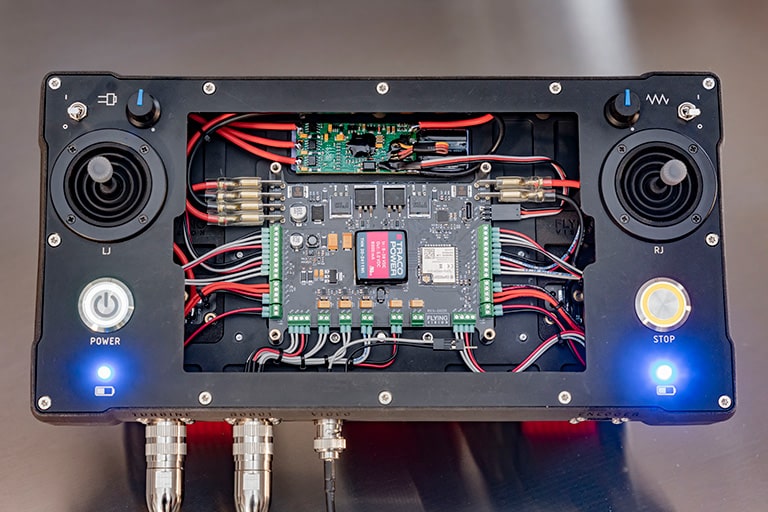

Control station allowing control of the startup and power of the suction system, activation of the camera lighting, fast movement mode, and control mode. It offers two control configurations: fast movement mode and control mode.

Crossing capacity
Ability to overcome obstacles such as weld seams, concave and convex deformations of walls, thanks to an innovative system of flexible suction skirt, ensuring precise and reliable inspection even on uneven surfaces.

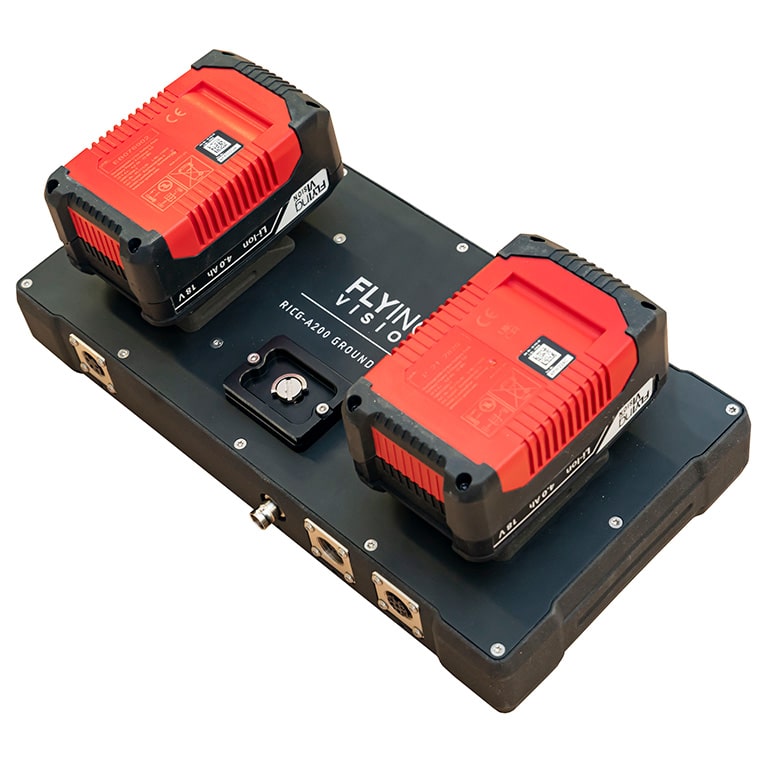

Hot swapping batteries
Enables battery replacement without interrupting inspections, allowing for continuous operation and workflow efficiency.

Grip and Mobility
Neutral buoyancy and straight-flow suction system ensure perfect adhesion to the walls, even in vertical position, and precise movement and positioning for flawless inspections.

PA probe holder
Modular and adaptable for conducting inspections without dead zones on most tank geometries. It can be moved from one side to the other of the robot on a positioning rail and flipped to perform inspections on the left and right, providing flexibility and adaptability to different configurations.

Hot swapping batteries
Allows for battery replacement without interrupting inspections and enables continuous operation.
The RICG is a precise and versatile tool that meets the needs of NDT inspections on submerged surfaces, even in challenging environments such as radioactive areas. With its robust design and advanced features, it ensures reliable and secure inspections while providing great versatility to accommodate various tank geometries.

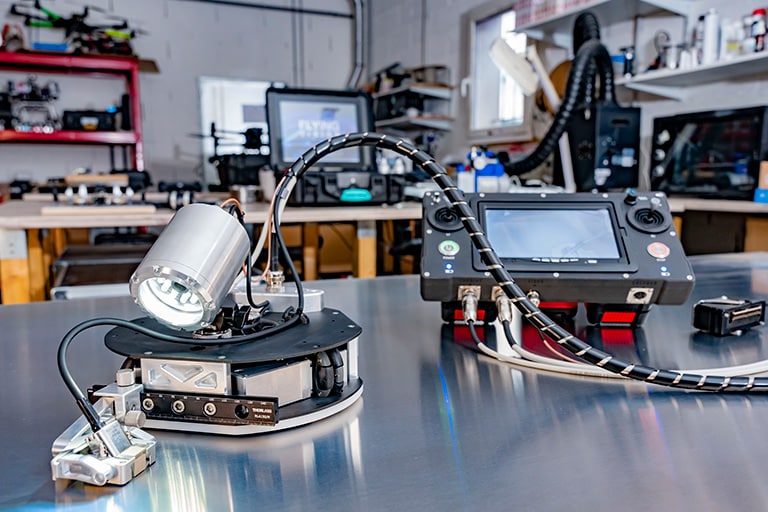

Composition of the kit
- RICG robot
- Umbilical cable
- Control station and its tripod
- 2 x 18 volt 4 Ah batteries
- PA probe holder
- Hardened transport case
Characteristic
Technical characteristics | Details |
---|---|
Tension | 18 volts |
batteries | 2 batteries in parallel of 4Ah |
Lighting | 200 lumens |
Encoding accuracy | 0.1 mm |
Basic camera angle | 120° |
Basic camera resolution | 720P |
Materials | Stainless steel / Aluminum / Plastic materials |
Maximum operating depth | 20 meters |
